Fiberglass Filament Tape Series
ULTRA-HIGH TENSILE REINFORCEMENT
High-performance reinforcement solutions including mono-directional, mesh, and double-sided fiberglass tapes, engineered for the most demanding industrial environments.
Key Advantages
- High Tensile Strength
- Abrasion Resistance
- Moisture Proof
- No Adhesive Residue

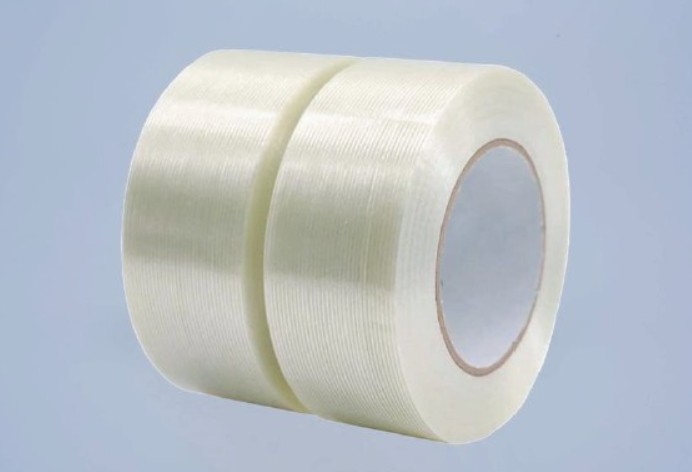

Mono-Directional Filament Tape
| Product Code | Adhesive | Thickness | Tack | Peel | Tensile | Elongation |
|---|---|---|---|---|---|---|
| Fiberglass Filament Tape13 | Hot Melt | 0.13 mm | 5# | 18 N/25mm | 280 N/in | 3% |
| Fiberglass Filament Tape14 | Hot Melt | 0.14 mm | 6# | 19 N/25mm | 290 N/in | 3% |
| Fiberglass Filament Tape15 | Hot Melt | 0.15 mm | 7# | 20 N/25mm | 300 N/in | 3% |

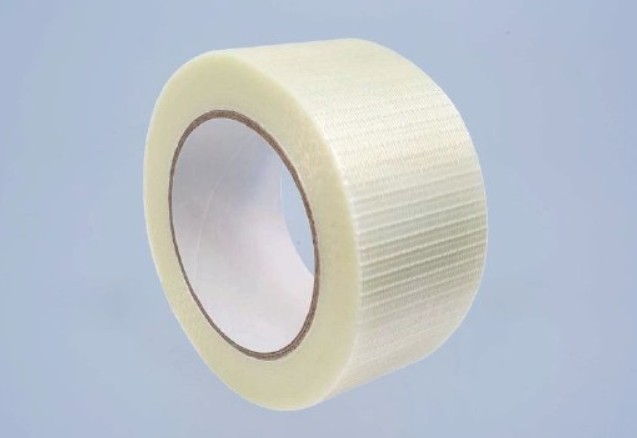

Fiberglass Mesh Tape
| Product Code | Adhesive | Thickness | Tack | Peel | Tensile | Elongation |
|---|---|---|---|---|---|---|
| Fiberglass Mesh Tape12 | Hot Melt | 120 μm | 8# | 6 N/25mm | 400 N/in | 3% |
| Fiberglass Mesh Tape13 | Hot Melt | 130 μm | 10# | 18 N/25mm | 500 N/in | 3% |
| Fiberglass Mesh Tape15 | Hot Melt | 150 μm | 11# | 18 N/25mm | 550 N/in | 3% |
Double-Sided Fiberglass Tape
| Product Code | Adhesive | Thickness | Tack | Peel | Tensile | Elongation |
|---|---|---|---|---|---|---|
| Double-Sided Fiberglass Tape20 | Hot Melt | 200 μm | 8# | 15 N/25mm | 400 N/in | 5% |
| Double-Sided Fiberglass Tape22 | Hot Melt | 220 μm | 12# | 18 N/25mm | 400 N/in | 5% |
| Double-Sided Fiberglass Tape23 | Hot Melt | 230 μm | 13# | 20 N/25mm | 400 N/in | 5% |
